INFRARED S/WAVE 2BAR LOW REACH

INFRARED S/WAVE 2BAR LOW REACH
Overall Dimensions: 580 x 500 x 1600mm

SKU: FY-2H Category:

Description

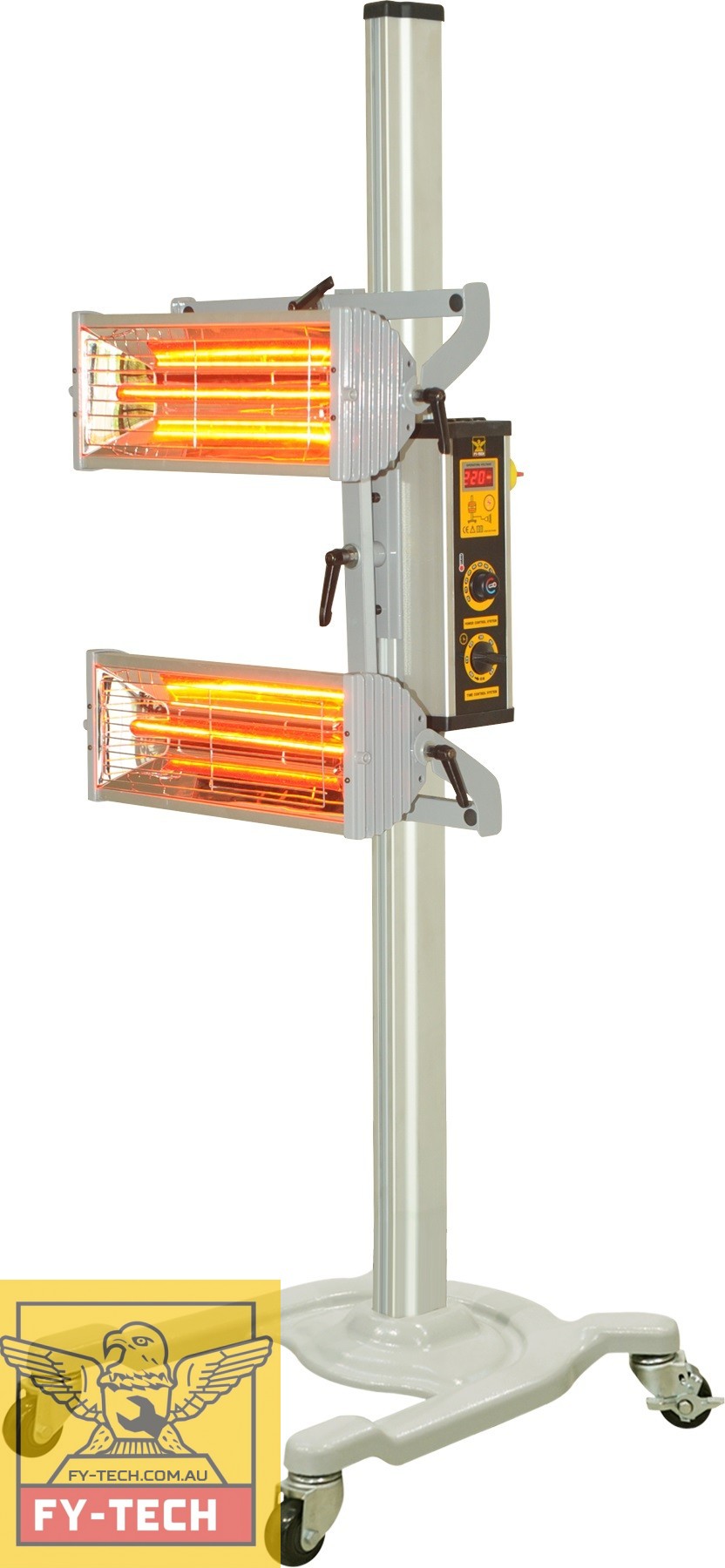

FY 2H

– Made from aluminium alloy and 304 grade bright stainless steel reflectors.
– VPOWER quartz shortwave infrared halogen lamps with a useful life of 5000-7000 hrs (Optional PHILIPS lamps also available).
– Easy to operate – simple mechanical control dial for setting curing time according to body paint requirements.
– Extrusion molded aluminium alloy locking system that is adjustable for strength and convenience.
– Industrially safe -1-1″ shape stand that allows the unit to be placed in any position, including between the car wheels, for curing.
– Extrusion moulded aluminium alloy structure for a solid unit that is durable but light in weight.
– Caster with two-way brakes.
– Control system made from PET hot press moulding for high stability and durability.
– With an advanced control and display system, the curing time and temperature can be accurately set.
– Cassette is able to move upward and downward and rotate 360°.

Technical Data FY-2H
Input Power AC200-240V 50/60Hz
Power 2x1000W
Time Setting 0- 60mIn (Adjustable)
Temperature 30 – 100°c
Curing Area 800x800mm
Overall Dimensions 580x500x1600mm
Packing Dimensions 1650x230x585mm
Net Weight 19kg
Gross Weight 22kg
