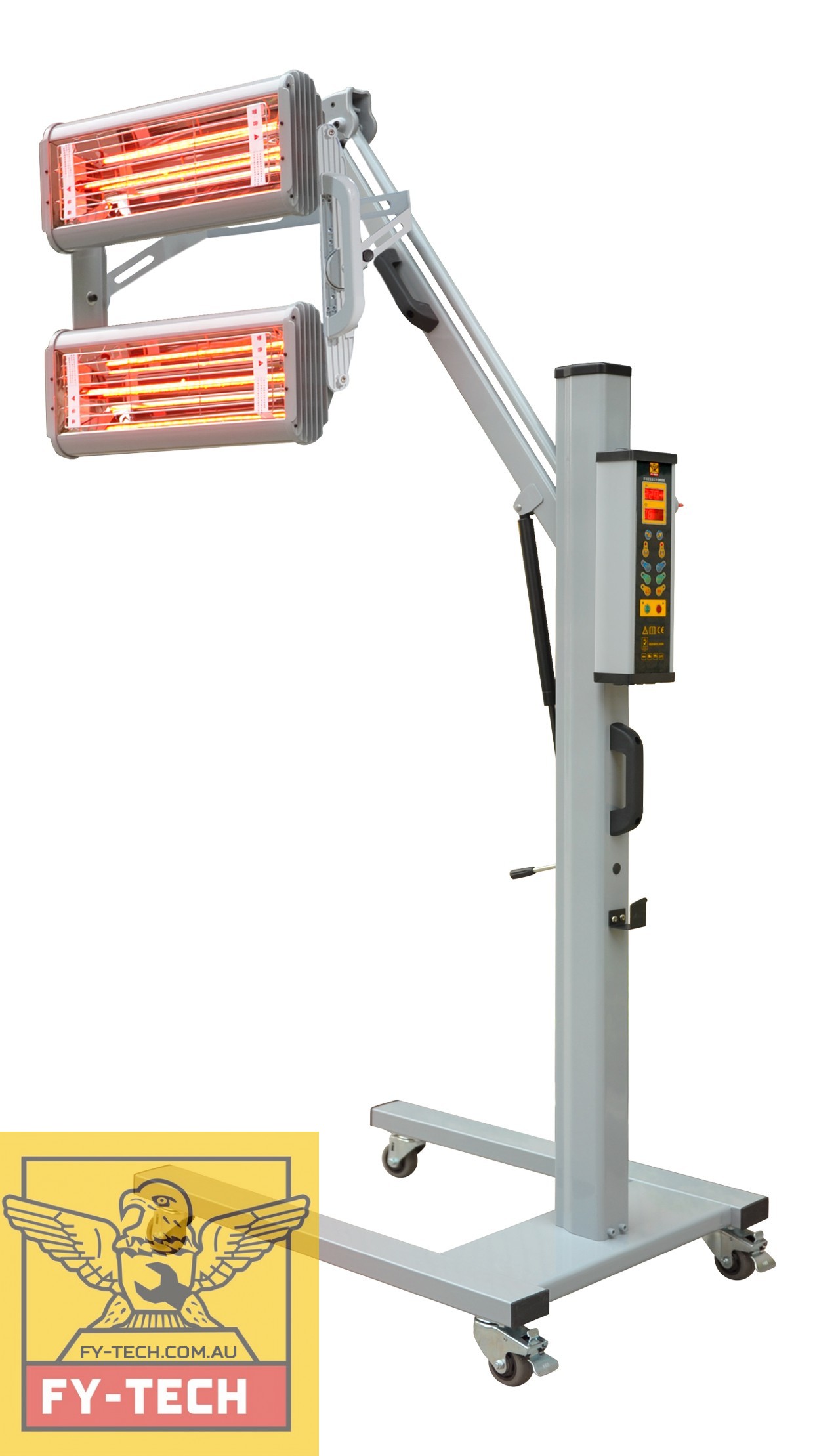

Infrared S/Wave 2 Bar High Reach FY-2AT

Input Voltage:AC 200-240V
Input power: 2x1100W
Curing Area:800×1000 mm
Dimensions of unit: 1650 x 860 x 660mm

SKU: FY-2AT Category: Tag:

Description

FY-2AT control system is made with the PET hot press molding technique to provide stability and durability and features a touch-key panel design. It can be adjusted according to different paint layer requirements. Each emitter can be independently controlled.

The cassette structure is precision designed and uses 304 grade bright stainless steel reflectors and VPOWER or PHILIPS 21″ gold plated shortwave infrared halogen lamps that enable the light to distribute evenly and increase the curing area.

  • Made from aluminium alloy and 304 grade bright stainless steel reflectors.
  • Equipped with Vpower’s 21″ quartz short wave infrared halogen lamps (Optional PHILIPS lamps also available).
  • Automatic device with LED display electronic timer and power settings.
  • Hydraulic lifter with an independent switch and 360º rotation.
  • With pulse ultrasonic paint curing function.
  • Power supply AC 200-240V Input Power: 2x1100W
  • Curing area of 800x1000mm
  • Adjustable temperature range of 40ºc – 100ºc
  • Adjustable timer of 0min-99mins.
  • Automatic overload protection.
  • Each emitter can be independently controlled.

Dimensions of unit: 1650 x 860 x 660mm
