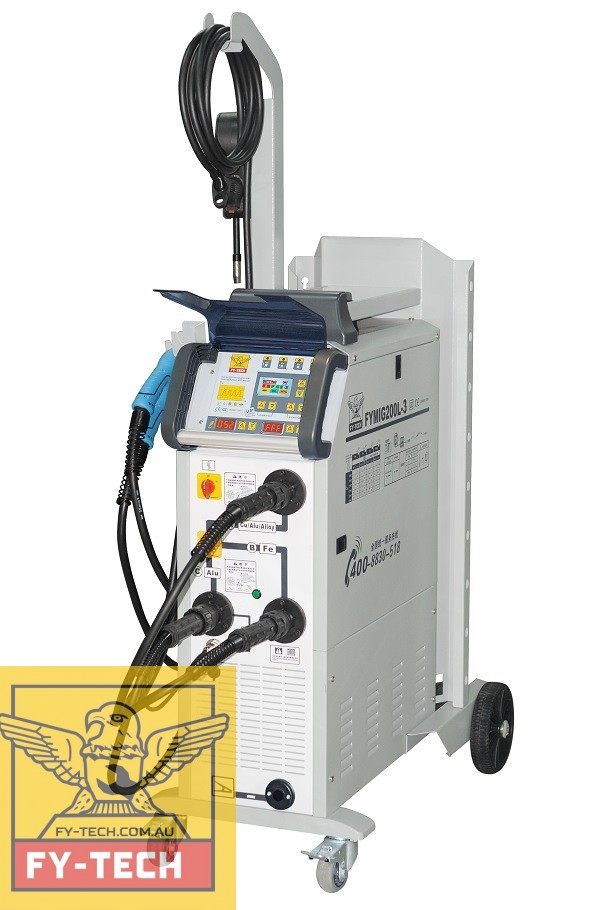

3 IN 1 MIG

Description

3 IN 1 MIG

IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition. Materials’mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies with various materials and achieve a perfect performance. There is also less post welding treatment work and less welding sparks.

With a multinational color LCD panel and the most advanced DSP control technology. It features one button intelligent design to automatically store equipment information and to select the welding modes for various materials like aluminium, steel, stainless steel, copper and nickle. The user can store the welding parameters easily and safely.

Input Voltage: 400V or 230V
Rated Input Power: 10.5Kva
Rated Input Current: 15A
Min –  Max: 35A/15.7V – 310A/31V
Duty Cycle: 220A/100% – 310A/65%
No-Load Output Voltage: 50V
Efficiency: >90%
Power Factor: >0.95
Insulation Grade: F
Frequency: 60 – 120kHz
Steel Wire Diameter: Φ0.6 – 1.2mm
Alu Alloy Wire Diameter: Φ0.8 – 1.2mm
Copper Alloy Wire Diameter: Φ0.6 – 1.4mm
Wire Feeder: Four-Rol Drive
Dimensions: 94x51x117mm
Weight: 102kg
